Laser Projection

 3D Vision Positioning Systems (VPS)

Laser Guided Assembly and Inspection on 3D Surfaces

Use our 3D Vision Positioning System (VPS) to accurately project a virtual laser template onto complex 3D molds and parts to guide operators through the process of part fabrication. Our Spatial Positioning System (SPS) combines laser projection technology with 3D vision technology; use it to locate a part in 3D space and it quickly locks onto its CAD-specified assembly position.

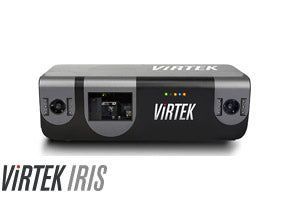

Black Virtek Iris device with the company logo on front. Includes two cameras.

Virtek Iris™ 3D with the NEW Vision Positioning System (VPS) significantly advances laser-guided assembly with innovative “FlashAlign” functionality and superior laser-line visibility. Initial alignment is 20X faster and re-alignments are reduced from minutes to seconds – save time, increase workflow all while retaining quality and accuracy.

Industries

Aerospace & Composites, Wind

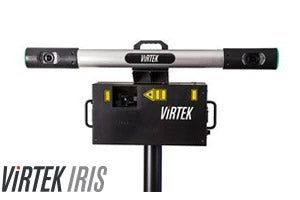

Virtek IRIS laser projection system, black and silver, mounted on a pole, with a handle on top.

Virtek Iris™ Spatial Positioning System (SPS) locates objects in 3D space and quickly locks onto CAD-specified assembly positions without the need for costly tooling or optical targets. The Iris system is compact and easy-to-use for improved productivity, quality and safety on the shop floor.

Industries

Aerospace & Composites, Industrial Fabrication, Wind

2D Laser Projection Systems (LPS)

Laser Guided Assembly on Flat 2D Surfaces

Accurately projects a virtual laser template to guide operators through the assembly process of flat 2D parts. Eliminates the need for blueprints and measuring tape. Even the most complicated designs can be built in minutes.

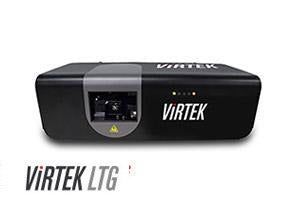

Black Virtek LTG laser projector with the Virtek logo.

Virtek Laser Template Generator™ (LTG) system projects a template that shows operators the exact location of all important features in each component or assembly. There’s no need to refer to blueprints or the use of a measuring tape, so even the most complicated designs can be built in minutes.

Industries

Aerospace & Composites,Pre-Fab Construction,Industrial Fabrication

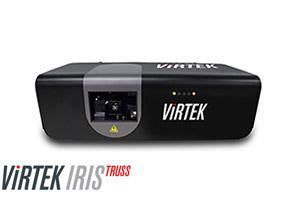

Black Virtek Iris Truss projector with the company logo.

The Virtek® IRIS™ Truss system projects a laser template of the truss to be built onto the work surface, highlighting the position and shape of all truss joints and connector plates. This eliminates the need for measuring, squaring and stringing.

Industries

Pre-Fab Construction

Quality Inspection

2D and Formed Parts

Virtek LaserQC® System is the premier solution for two-dimensional and formed part inspection. LaserQC® dramatically increases throughput in precision sheet metal, precision foam, tubing, aerospace parts, and gasket fabrication. The system is designed for the shop floor and ideal for producing first article inspections, reverse engineering, quality reporting (SPC, ISO, LEAN), and automatic formed measurement.

Virtek LaserQC machine, gray, angled base with a glass surface, overhead camera.

Industries

Sheet Metal & Gaskets

Virtek AI Camera

2D and Formed Parts

The IRIS AI Camera Inspection system detects what the human eye might miss, adapting to lighting and environmental changes for consistent, reliable inspections of backing paper, general foreign object debris, and captures process monitoring steps. Integrated with the IRIS 3D platform, it provides a unified control interface, third-party compatibility, and full traceability with date/time-stamped, serialnumbered inspection reports.

Black VIRTEK AI camera with lens, logo, and heat sink.

Industries

Aero for AI Inspection & , No AI for Process , Monitoring for , Aero/Industrial
