IRIS 3D Composites

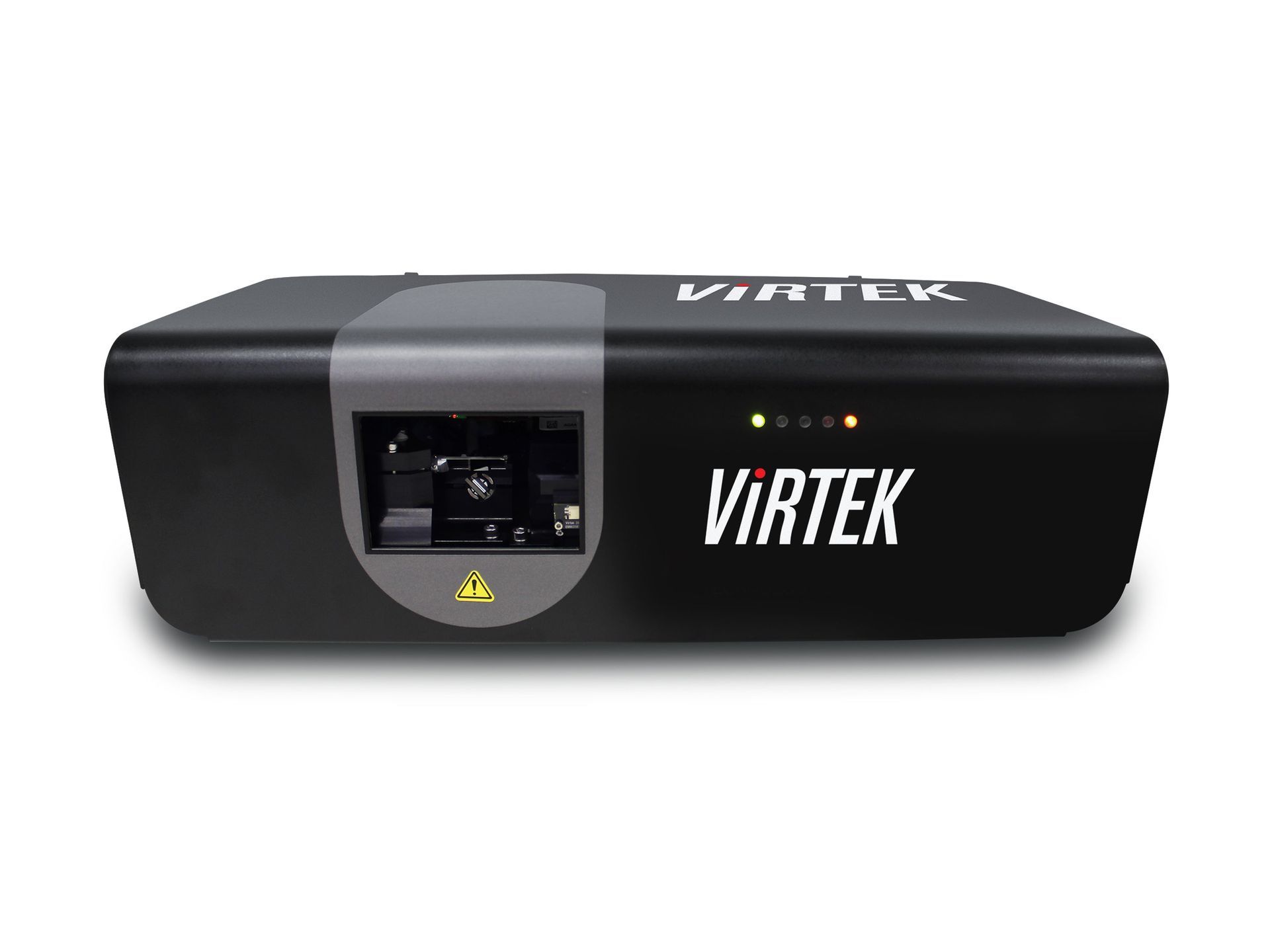

VIRTEK IRIS 3D

Project laser templates exponentially faster

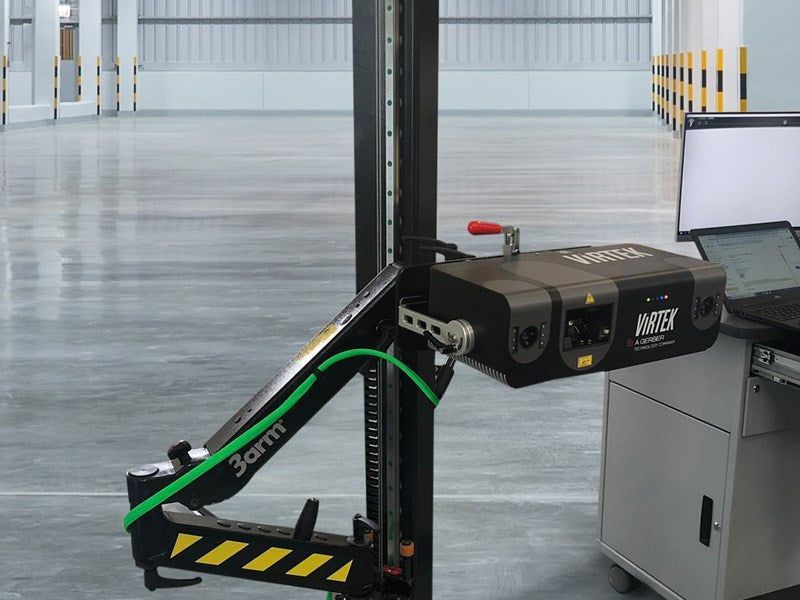

Vision Positioning System

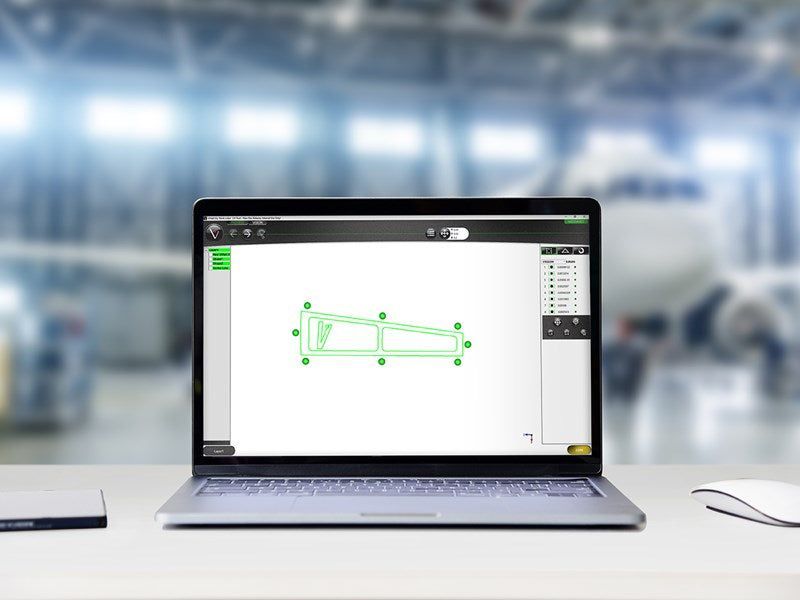

With the Iris 3D, the laser projected image is always precise, because it is generated from the product’s CAD data.

New Release: Virtek IRIS 3D

Innovative vision technology with laser projection all in one system

Accurately projects a 3D virtual laser template onto molds and parts to guide operators through the process of part fabrication whether it be ply layup, paint masking, final assembly or component location.

The Next Generation of AI-Powered Inspection

Faster setup and realignments mean significant time savings and increased workflow productivity.

Minimize repair costs and downtime

Open the work order, and the system will begin

Minimize repair costs and downtime

Open the work order, and the system will begin projecting. Start working right away.

Increase speed and precision with reduced operator errors

Reduces ownership cost, reduces maintenance time with field-replaceable components. Avoid costly delays and eliminate operator error.

Case Study: Embraer

Paint-Masking Application

The Virtek Iris 3D system significantly advances laser-guided assembly with new integrated vision technology, innovative FlashAlign functionality, and superior laser-line visibility. Setup is 20 times faster, and realignments are reduced from minutes to seconds—saving time and increasing workflow productivity while retaining quality and accuracy.

Taking a manual, complex and lengthy process and making it simple and cost-effective with an ROI in less than 6 months.

IRIS 3D PRODUCT INFO (PDF)

“The time savings have been remarkable, our technicians in the paint booth can now layout an aircraft in four hours with two technicians when it used to take 2-3 shifts when working with Mylar templates. Also, the amount of rework has almost been eliminated."

Scott Groves,

Manufacturing Engineer- Paint,

Embraer Executive Jets Inc.
