Prusa Pro AFS
Automated Farm System by Prusa Research is a 3D printing production facility, a perfect solution for rapid prototyping, small-series production and a wide range of industrial uses.

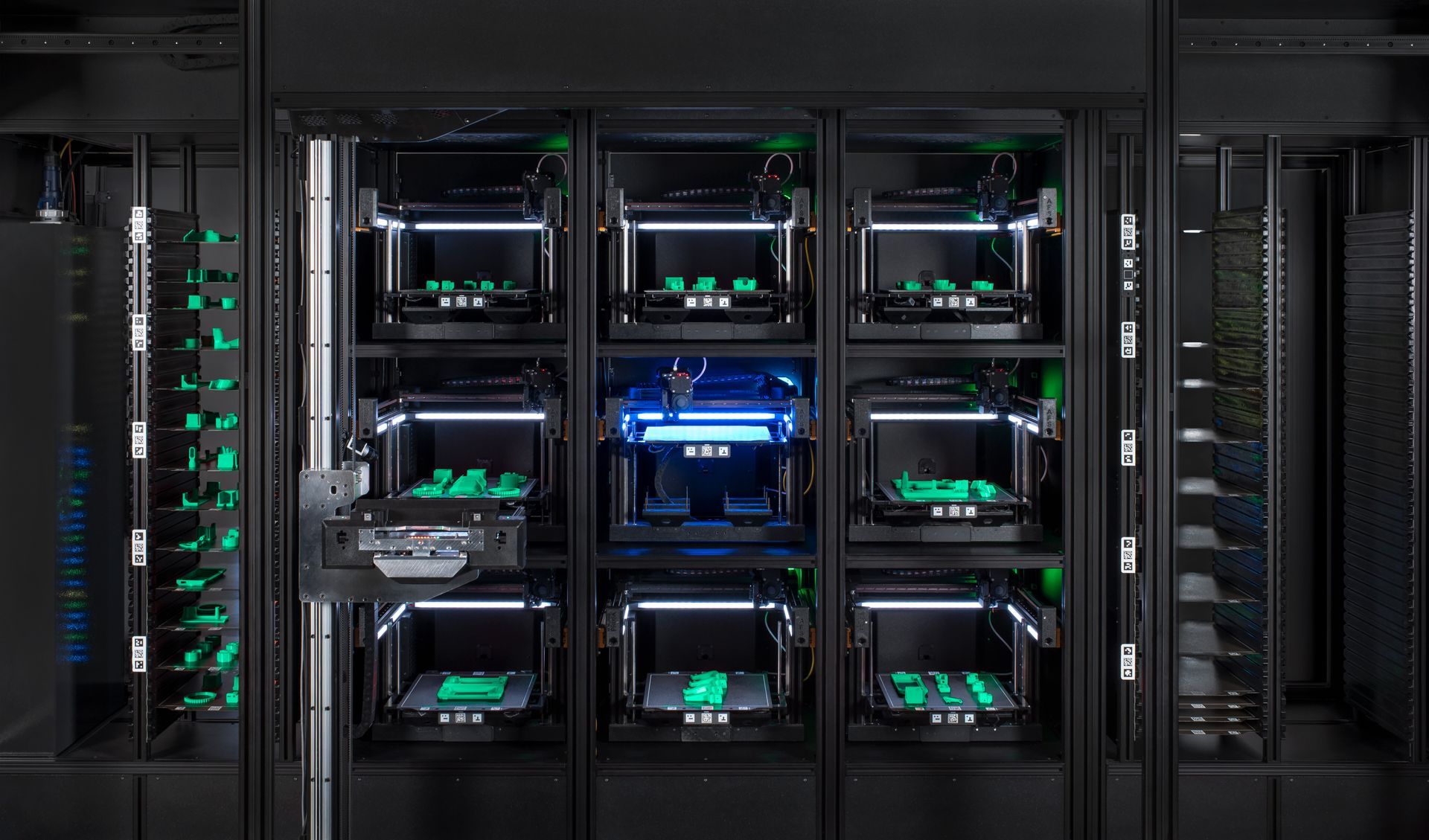

9 Fast 3D printers

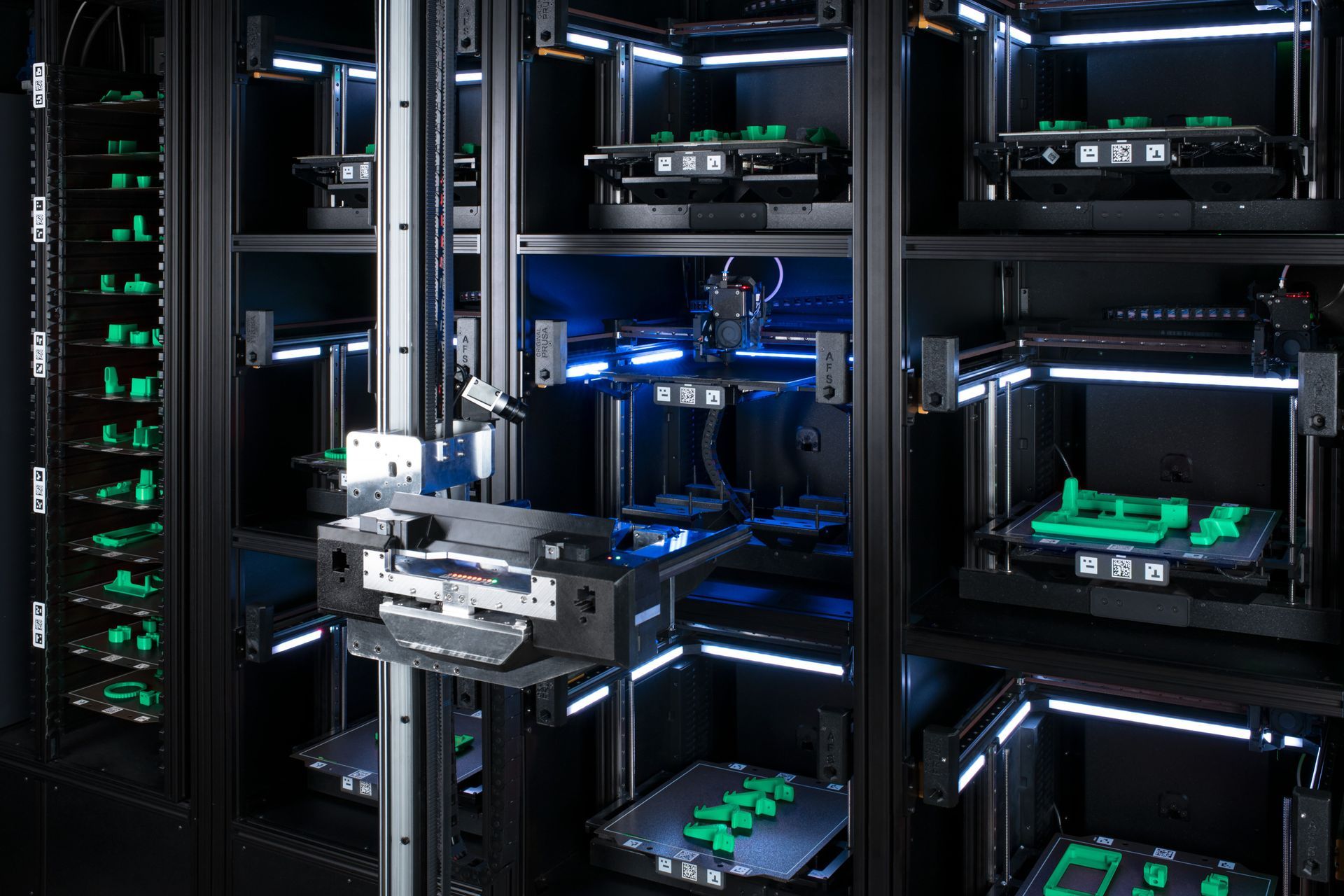

The AFS is equipped with 9 fast CoreXY Input Shaper 3D printers, each with a print volume of 260×260×175 mm. The automated arm delivers finished prints into the integrated smart storage so the printer can resume operation as quickly as possible. If needed, it is possible to expand the AFS in increments of 9, allowing for increased printing capacity to meet growing demand.

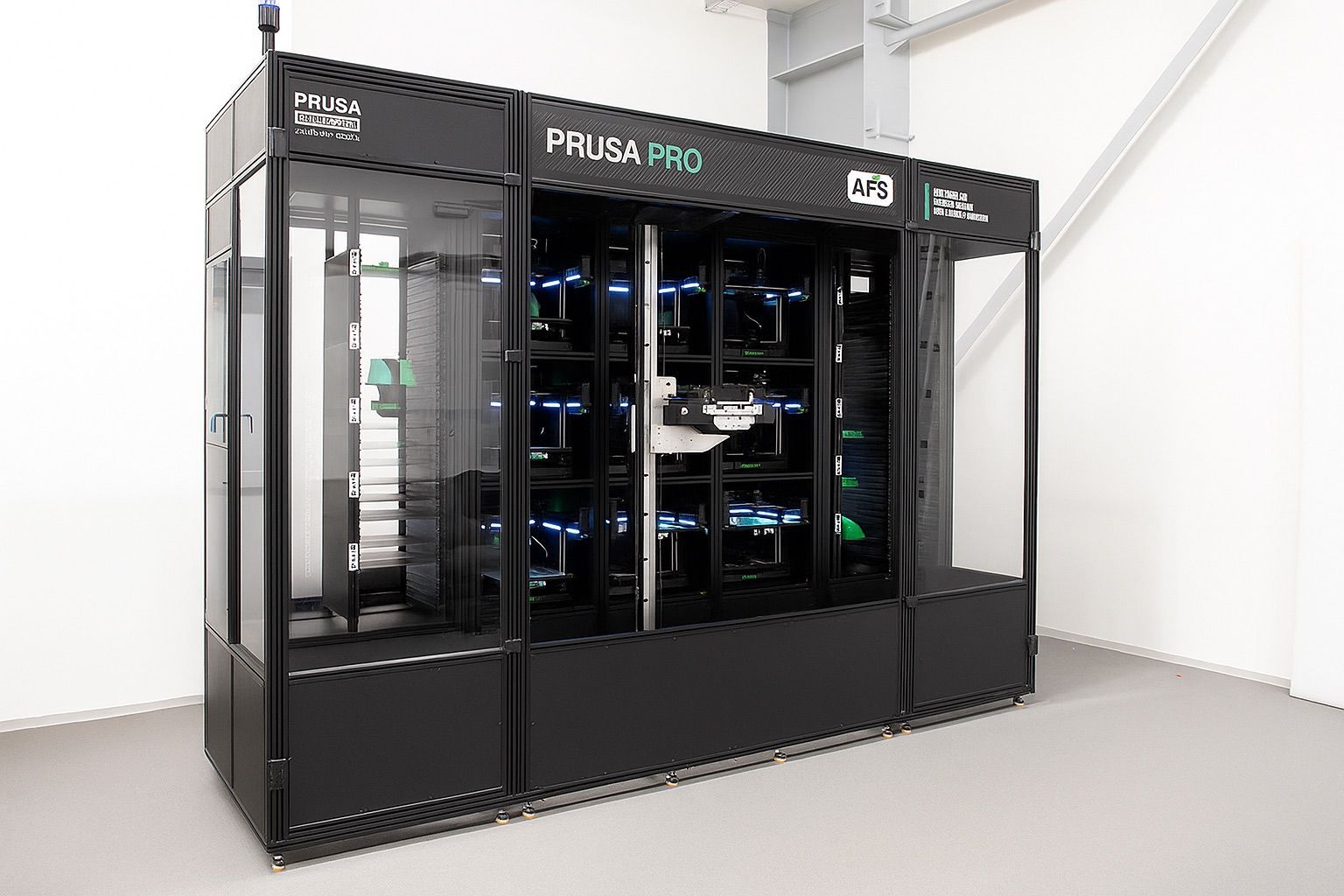

Turn-Key Solution
PRUSA PRO AFS is a 3D printing production facility for both large and small businesses. With a wide range of supported thermoplastics and autonomous operation, the AFS is ideal for small-batch production, rapid prototyping, manufacturing of highly customized items, R&D and other areas. The internally developed software manages all parts of the production process.
- Ease of Use
- Minimize Downtimes
- Smart Storage
- Modular Configuration
- Efficient and Sustainable
Prusa Pro AFS Specifications
[Specs]
Specification
Number of 3D Printers
9, with the possibility of incremental expansion by multiples of 9
Print Volume
260 × 260 × 175 mm / 10.23 × 10.23 × 6.89 in
Print Surface
Removable spring steel sheets; Smooth, Textured, Satin, PA Nylon options
Nozzle
Easy-swap, V6-compatible, up to 290 °C, integrated nozzle cleaning system
Extruder
Next-generation Nextruder with LoadCell-based automatic mesh bed leveling, built-in filament sensor, and accelerometer
Heatbed
Segmented heatbed, up to 115 °C
Print Extraction and Delivery
Automated removal of finished prints to storage and placement of empty print sheets
Farm Management Software
Prusa Connect Farm with automatic task scheduling, print queuing, and maintenance scheduling
3D Printer Kinematics
CoreXY with Input Shaper
Other Features
Easy printer swapping, remote access, emergency stop switch, safe access to finished prints, custom HEPA filtration designed for 3D printing
