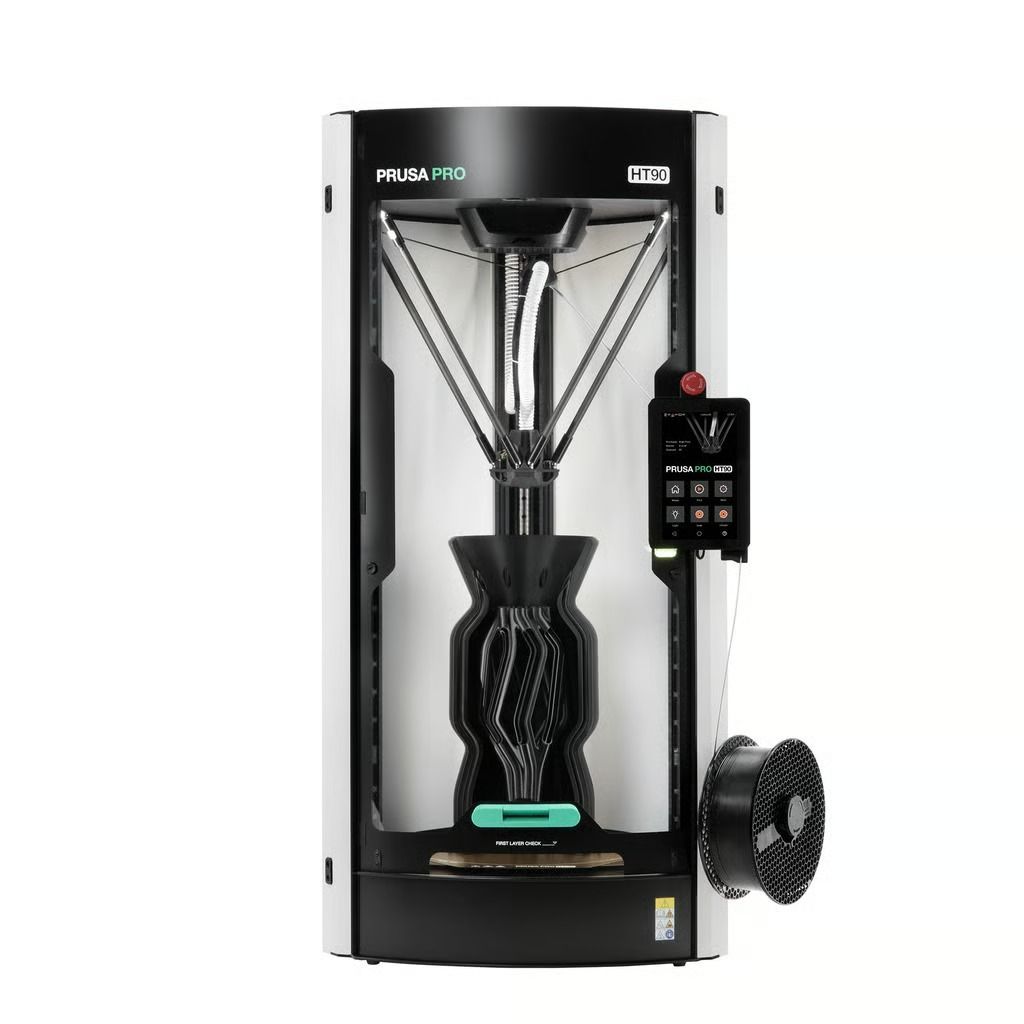

Prusa Pro HT90
Prusa Pro HT90
[Specs]
Measurements
Build Volume
Ø300 × 400 mm
Filament diameter
1.75 mm
Layer height
0.05-0.30 mm
Printer dimensions
Width
530 mm (without the filament holder)
Depth
530 mm
Height
1050 mm (1470 mm with the door opened)
Electronics
Mainboard
32-bit Duet control board
Software
Klipper control system, Input Shaper, Pressure Advance
Connectivity
Ethernet (RJ45), detachable Wi-Fi module, offline operation available
Surveillance
Built-in integrated camera and chamber lighting
Extruder
Extruder
Swappable direct-drive print heads, quick-swap Revo nozzles 0.25 to 0.8mm diameter, 1.75mm filament compatible
Nozzle compatibility
All Revo nozzles are hardware compatible. Note that some Revo nozzles are not supported and may require creating a custom slicer profile.
Maximum filament flow
40 mm³/s (ABS and 0.8mm nozzle)
Maximum speed
600 mm/s
Maximum print speed
250 mm/s
Acceleration
20000 mm/s²
Max. operating temperature
Operating temperature range
20 °C - 32 °C
Maximal air humidity
85 %, non-condensing
Max bed temperature
155 °C
Max chamber temperature
up to 90 °C
Max nozzle temperature
300 °C/500 °C
Cooling
Cooling
Servo-operated high-speed flap for immediate airflow changes, high-pressure turbine
Supported materials
High Temp Print head
PEI (Ultem), PEEK, PEKK, PPSU, PSU, PPS, PES and more.
High Flow Print head
PLA, ASA, PETG, FLEX (TPU, TPE), ABS, PA, PC, PCCF, and more
Print surface
Print pads
Textured PEI steel sheet, PA steel sheet optionally available
Calibration
Calibration
Always-perfect first layer with Loadcell sensor, fully automatic calibration
Power
Power supply
110V 15A / 230V 10A 50/60Hz
