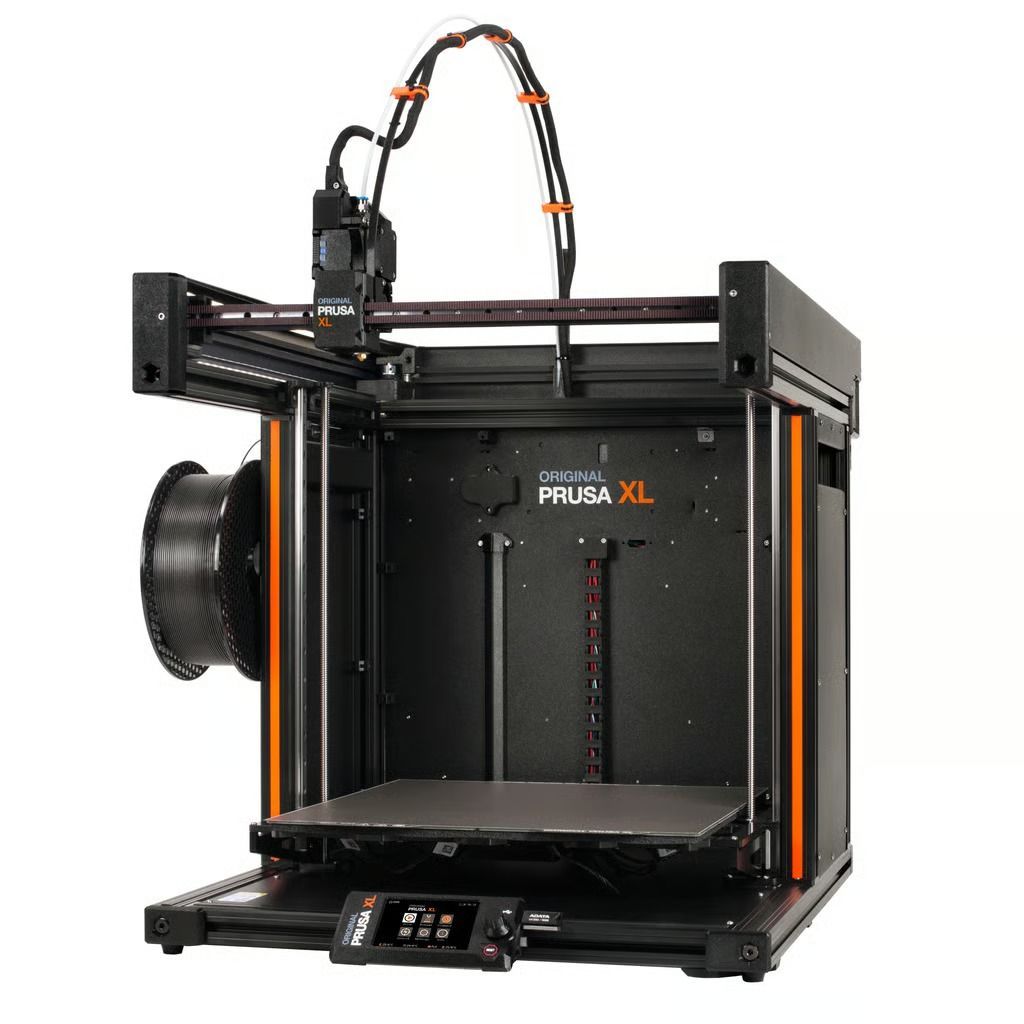

Prusa XL Semi-Assembled Single-Toolhead 3D Printer
Prusa XL Semi-Assembled Single-Toolhead 3D Printer
[Specs]
Measurements
Build Volume
360×360×360 mm (14.17’’×14.17’’×14.17’’)
Filament diameter
1.75 mm
Layer height
0.05-0.30 mm
Printer dimensions (without spool)
27.9 kg (single-tool) / 29.3 kg (dual-head) / 33.7 kg (five-head), 700 mm (w) × 900 mm (h) × 720 mm (d) (27.5’’×35.5’’×28.5’’) including side spoolholders and the separate top enclosure cover
Electronics
Mainboard
Custom 32-bit xBuddy electronics with STM32
Stepper Drivers
Trinamic 2130
Stepper motors
1.8°
Extruder
Extruder
Nextruder, Direct Drive, E3D V6 compatible (with adapter)
Extruder electronics
Custom breakout board for connecting fans, thermistors and other parts.
Filament path
Aluminum heatsink, all-metal hotend
Drive system
Nextruder Planetary Gear System, 10:1 gearbox ratio
Max. operating temperature
Max nozzle temperature
290 °C / 554 °F
Max heatbed temperature
120 °C / 248 °F
Controls
LCD screen
3.5″ graphic 65k color screen
Connectivity
ESP Wi-Fi module / You can request printer without ESP WI-Fi module via Price Quote Request.
Print medium
USB drive / LAN / internet via Prusa Connect
Sensors
Advanced sensors
Filament sensor, Loadcell sensor, Power panic, 4 high-precision thermistors (genuine Semitec) + fan motors RPM monitoring
Print surface
Print surface
Segmented heatbed with 16 individually controlled segments, removable magnetic steel sheets with different surface finishes
Calibration
Bed calibration
Automatic, Mesh Bed Leveling (only on print area)
Materials
Supported materials
PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and when using the Original Prusa Enclosure with filtration add-on ABS, ASA, HIPS, PA
Power
PSU
240W, custom made by Delta with Power Panic HW
Average power draw on stand-by
80W
Average power draw while heating up before calibration
550W
Average power draw while printing
235W
